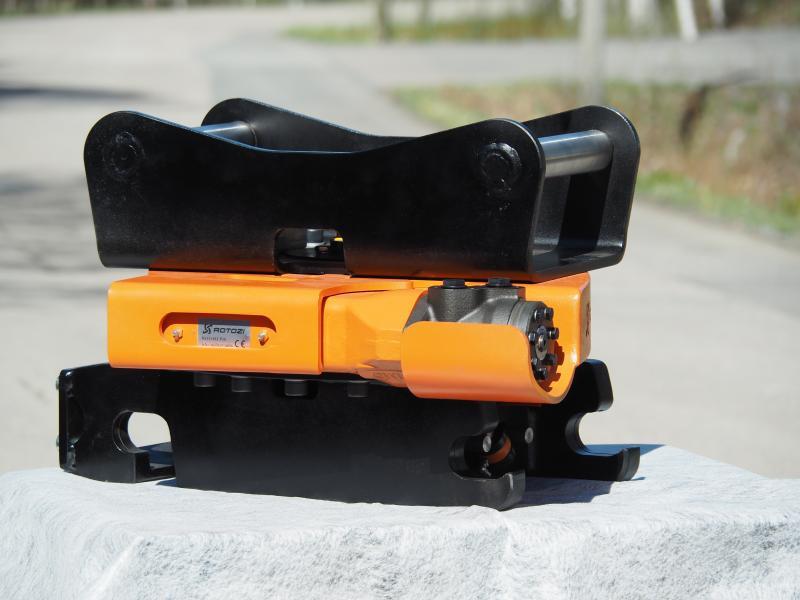

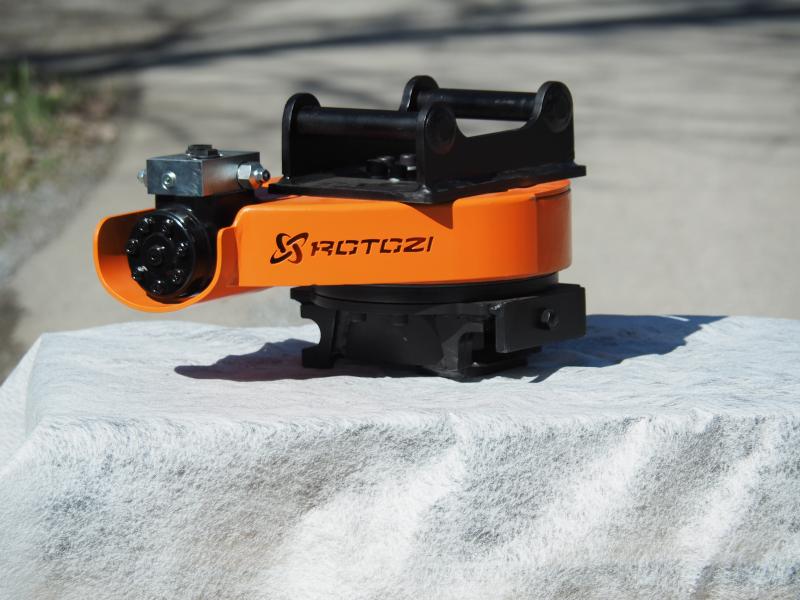

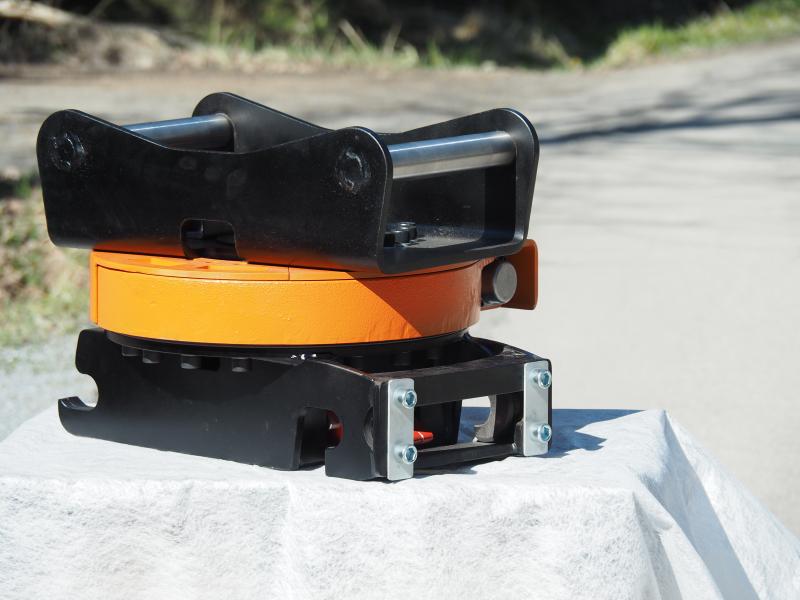

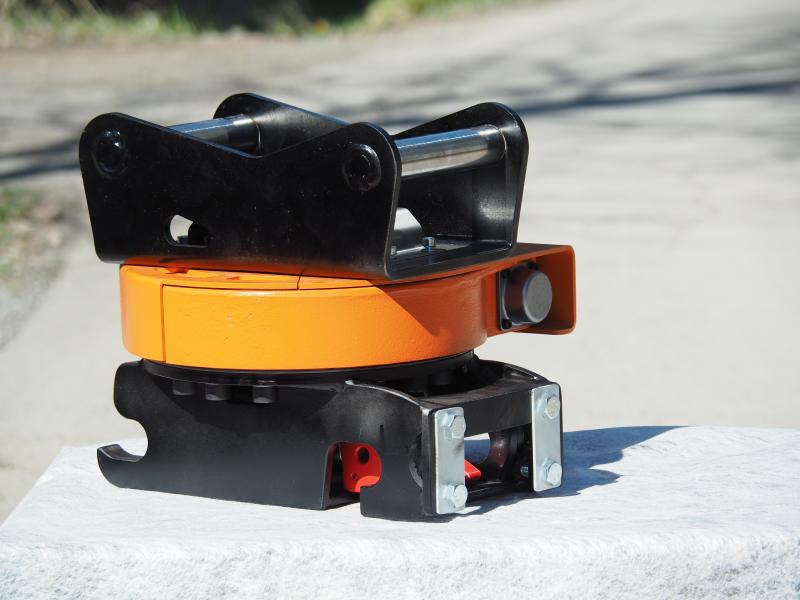

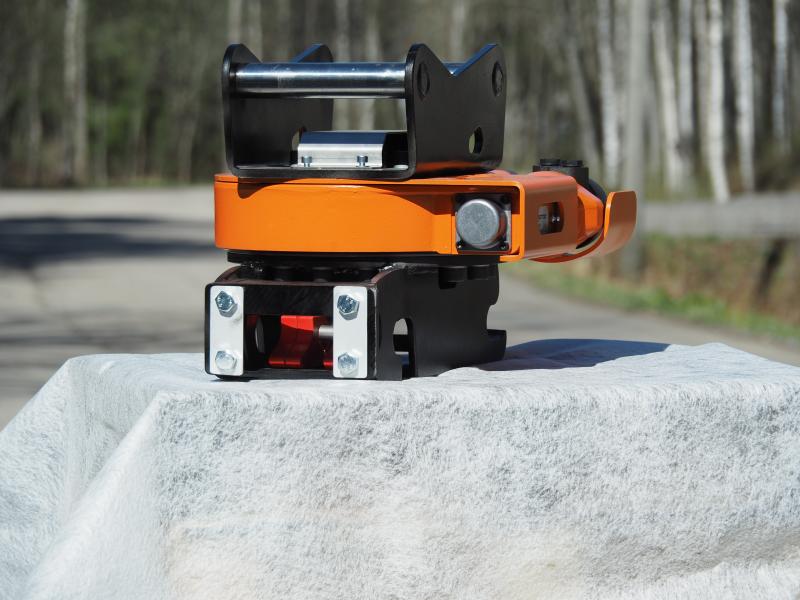

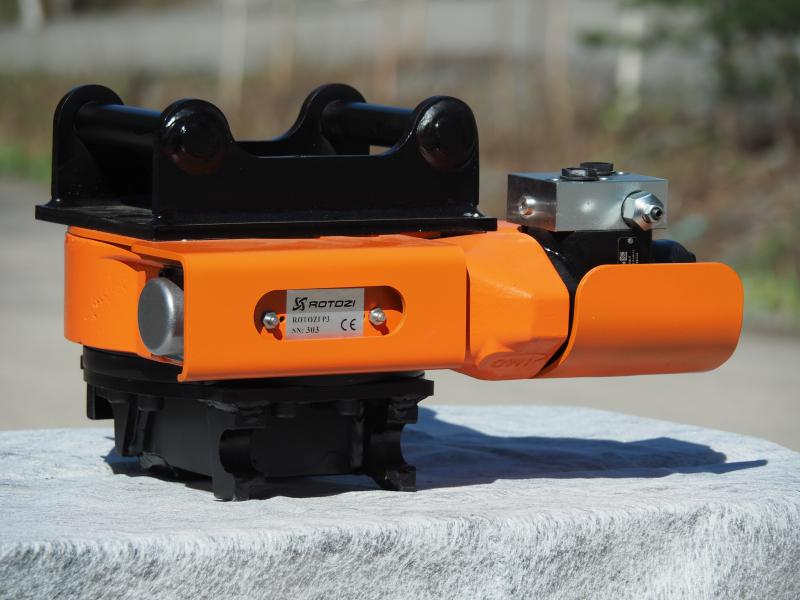

WHAT SORT OF bucket ROTATOR DO YOU NEED?

You can find a suitable bucket rotator from our range from two-tonne mini excavators right up to 30 tonnes. If required, we’ll also tailor the unit to match your wishes.

All models can be obtained with hydraulic bushings. Hydraulic locking is available for all Rotozi models with the temporary exception of the smallest one (Rotozi 3). You can also choose the direction of installation for the hydraulic motor, a definite advantage on cramped work sites. The structures are made of SSAB Hardox and Strenx steel, which assures high resistance to wear and strong durability – despite their lightness.

The Rotozi 3, 5 and 10 represent our new collection. The three largest models will also get a brand new look.

ShopView a measurement diagram

Give us a call and we’ll tell you more!
puh. +358 20 734 7280

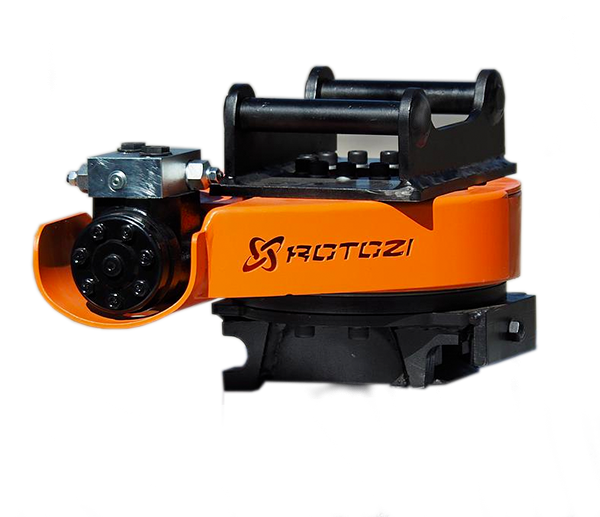

Rotozi P3

Recommended maximum machine size 3 t

Four-channel hydraulic bushing.

Standard mount

S30

Height

255 mm

Weight

61 kg

Rotation

360 degrees

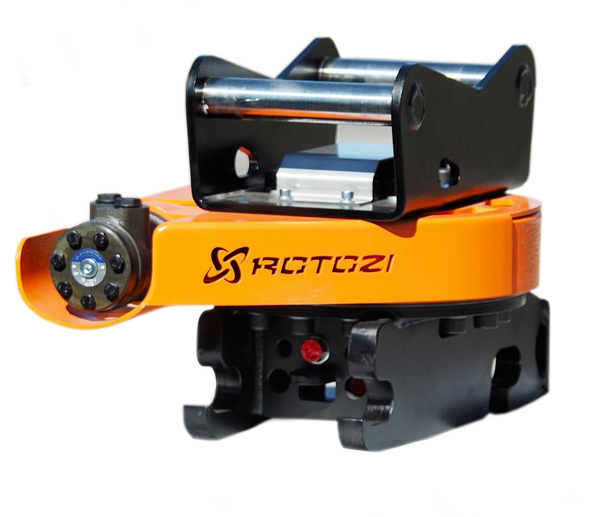

Rotozi P5

Recommended maximum machine size 5 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S40

Height

286 mm

Weight

98 kg

Rotation

360 degrees

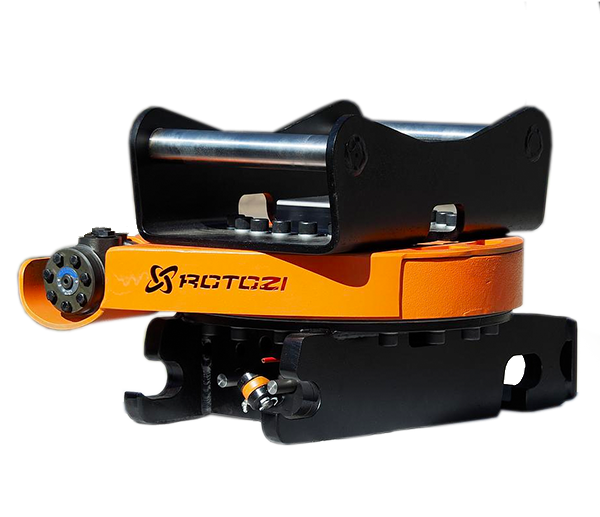

Rotozi P10

Recommended maximum machine size 10 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S45

Height

307 mm

Weight

165 kg

Rotation

360 degrees

Rotozi P15

Recommended maximum machine size 15 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S60 and NTP10

Height

430 mm

Weight

280 kg

Rotation

360 degrees

Rotozi P20

Recommended maximum machine size 20 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S70 and NTP10

Height

510 mm

Weight

360 kg

Rotation

360 degrees

Rotozi P30

Recommended maximum machine size 30 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S80 and NTP10

Height

600 mm

Weight

500 kg

Rotation

360 degrees
