WHAT SORT OF bucket ROTATOR DO YOU NEED?

You can find a suitable bucket rotator from our range from two-tonne mini excavators right up to 10 tonnes. If required, we’ll also tailor the unit to match your wishes.

All models can be obtained with hydraulic bushings. Hydraulic locking is available for all Rotozi models with the temporary exception of the smallest one (Rotozi 3). You can also choose the direction of installation for the hydraulic motor, a definite advantage on cramped work sites. The structures are made of SSAB Hardox and Strenx steel, which assures high resistance to wear and strong durability – despite their lightness.



View a measurement diagram User manual

Give us a call and we’ll tell you more!
puh. +358 20 734 7280

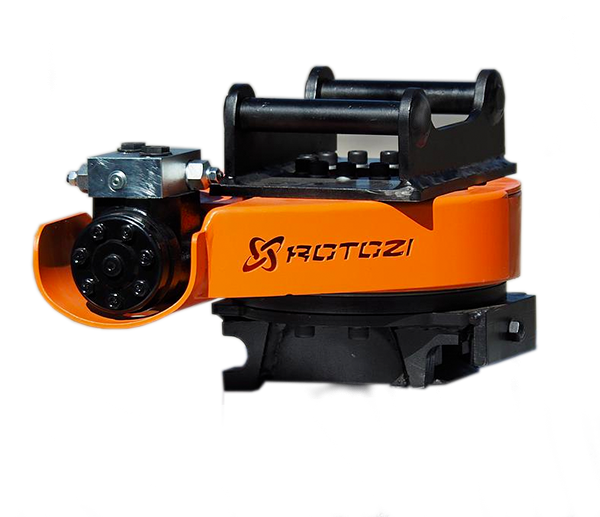

Rotozi P3 Man

MANUAL BUCKET LOCKING

Recommended maximum machine size 3 t

Manual bucket locking

Standard mount

S30

Height

250 mm

Weight

62 kg

Rotation

Unlimited


Price

3 790 € (excl. VAT)

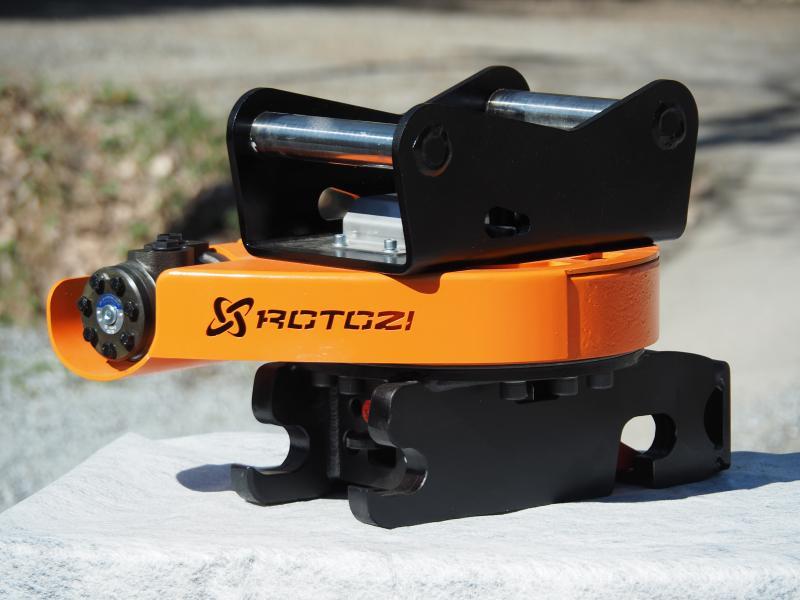

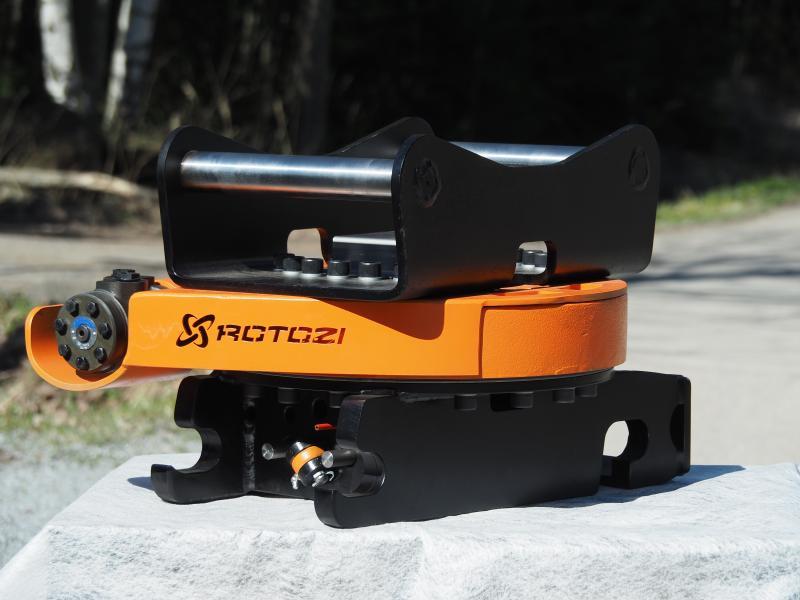

Rotozi P5 Man

MANUAL BUCKET LOCKING

Recommended maximum machine size 5 t

Manual bucket locking.

Standard mount

S40

Height

286

Weight

105

Rotation

Unlimited


Price

3 790 € (excl. VAT)

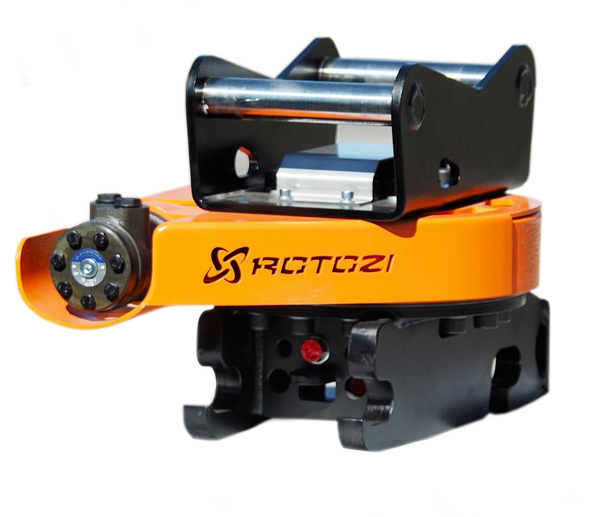

Rotozi P5 Hyd

HYDRAULIC BUCKET LOCKING

Recommended maximum machine size 5 t

Four-channel hydraulic bushing, hydraulic locking.

Standard mount

S40

Height

286 mm

Weight

110 kg

Rotation

Unlimited


Price

4 790 € (excl. VAT)

Rotozi P10 Man

MANUAL BUCKET LOCKING

Recommended maximum machine size 10 t

ManuaL locking.

Standard mount

S45

Height

307

Weight

165

Rotation

Unlimited


Price

4 890 € (excl. VAT)

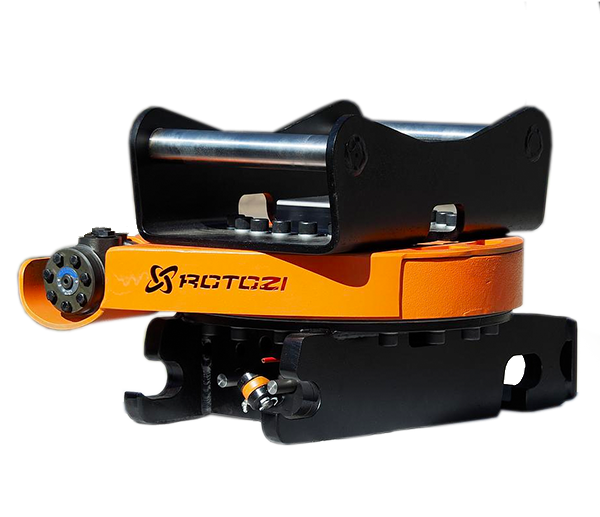

ROTOZI P10 Hyd

HYDRAULIC BUCKET LOCKING

Recommended maximum machine size 10 t

Hydraulic locking. 4-channel swivel joint, channels: 2 x 1/4" and  2 x 1/2"

Standard mount

S45

Height

307 mm

Weight

175 kg

Rotation

Unlimited


Price

5 890 € (excl. VAT)
